Gerberit Duofix > Wall Hung WC Frame (0.82m) With UP200 Cistern.

Gerberit Duofix Wall Hung WC Frame (0.82m) With UP200 Cistern.
Geberit wall hung frames, cisterns and flush plates
Free delivery to mainland U.K.
See related products

Product Information

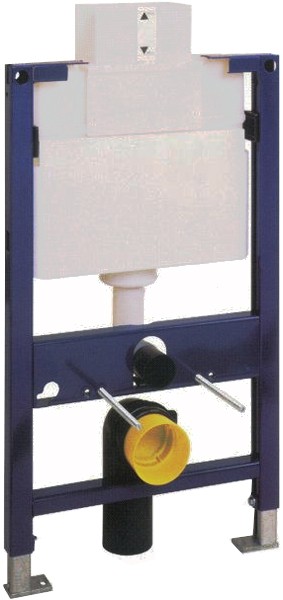

Wall hung wc frame (0.82m high) with UP200 cistern, pre-wall brackets and WC bend. Suitable for use with Gerberit Kappa and Artline dual flush plates only.

  • Pre-wall brackets and WC bend included.
  • For use with Gerberit Kappa and Artline flush plates only.
  • Suitable for wall-hung WC with bolt fixings at 180mm or 230mm centres.
  • Suitable for mounting in front of a solid or drywall construction.
  • Good for heavy loads up to 400kg (64 stone).

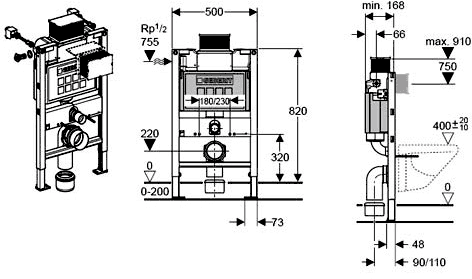

  • Frame height: 820mm.
  • Self-supporting frame.
  • Adjustable legs (50 to 200mm).
  • Rotating foot plate.
  • 9mm hole for fastening to wood frame construction.
  • Easy adjustment of flush plate rods.
  • Fully insulated against condensation.
  • Protection housing for service opening, can be cut to length.
  • UP200 concealed cistern has front and top wall plate connections.
  • Connections: 1/2" inlet.

£239.98
Includes VAT & Delivery
(£199.98 excluding VAT)


Save: £99.58    RRP: £339.56

Product Code:
GE-TFRAME01


The Geberit Duofix range of frames allows you to create an eye-catching new bathroom without expensive structural work. These cistern fames are hidden within a wall, and can be bolted to the floor or wall. The frame system can be used in the tightest of spaces including corners, allowing you the freedom to create stunning bathrooms without compromise.



Wall Hung WC Frame (0.82m) With UP200 Cistern. additional image

Wall Hung WC Frame (0.82m) With UP200 Cistern. additional image
